510 Escalator Renewal Package Escalator Glass Balustrade Update CNAS Certified
Package introduction
1. The applicable escalator refurbishment task

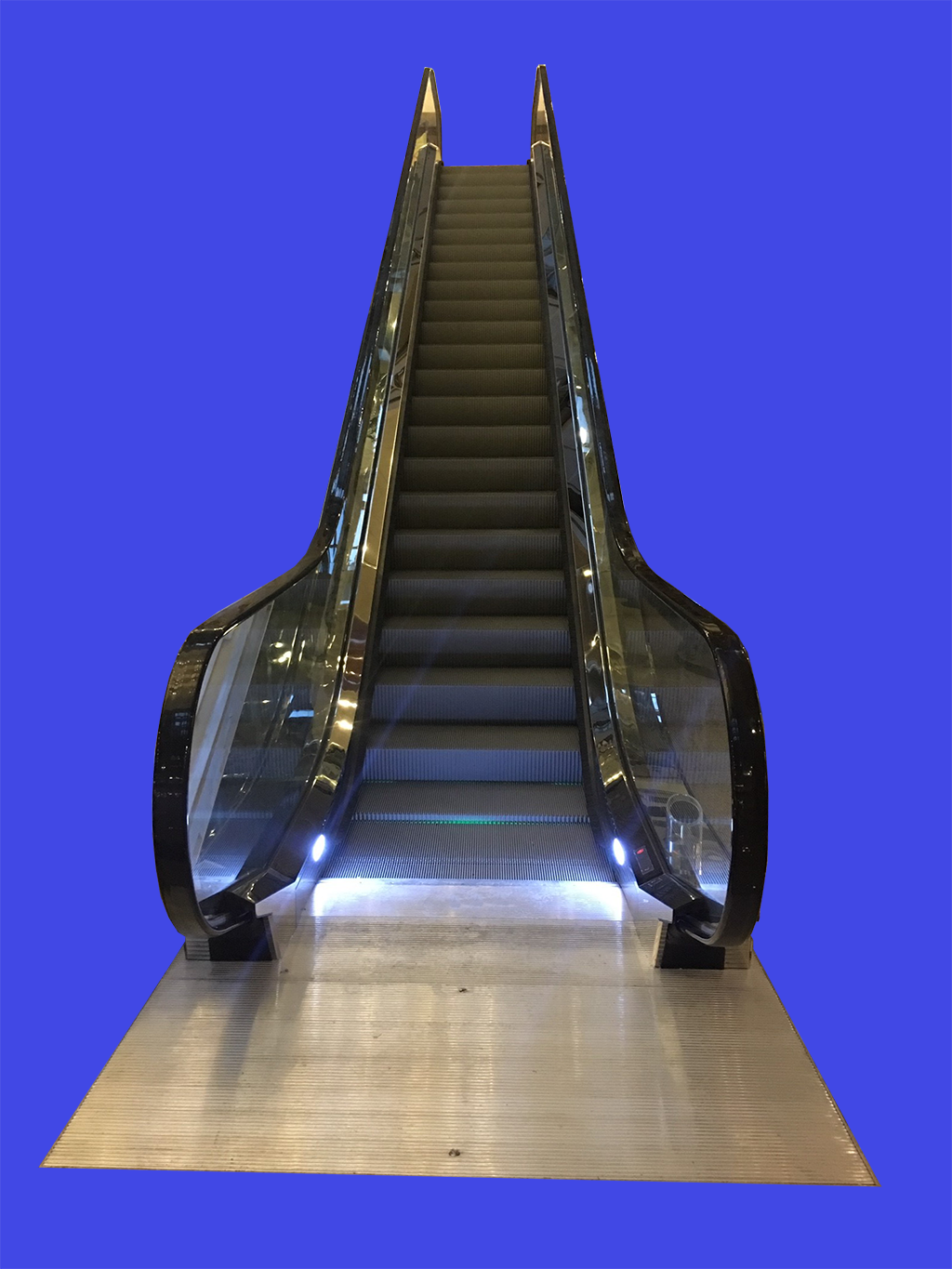

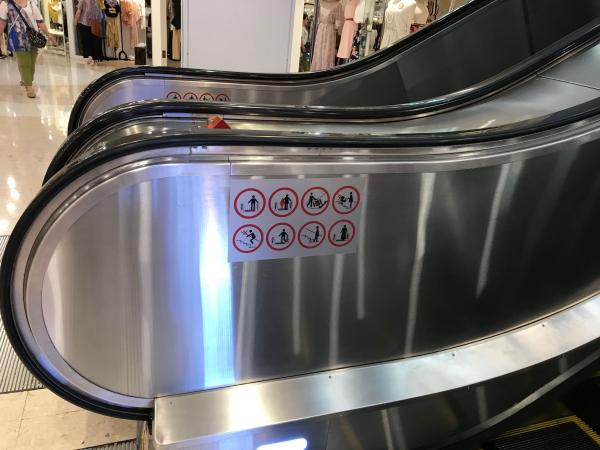

The Package 510-mod-02 is designed to refurbish the appearance of an escalator, transforming its outdated off-center handrail balustrade into a modern slimline center handrail design. The package includes modifications and replacements for various components, including the skirt panel, inner and outer decking, handrail, handrail guide profile, handrail drive, and floor plate. Optional lighting features are also available, such as under handrail lighting, brush guard lighting, and comb lighting. Additionally, customers have the option to customize the escalator's exterior cladding to their preferences. Overall, the package is designed to give old escalators a new and modern look.
2. Technical solution
Basic package
| Parts | Retrofit method | Configuration and key specification |
| (1) Main drive | | |
| (2) Tension carriage | | |
| (3) Track system | | |
| (4) Machine | | |
| (5) Drive Chain | | |
| (6) Controller | | |
| (7) Safety switches | | |
| (8) Handrail | original design | Rubber (SBR) / NT3000 / CSM |
| (9) Step | | |
| (10) Step chain | | |
| (11) Handrail drive | new design | Friction belt drive |
| (12)Skirt panel | new design | 2mm stainless steel sus304 |
| (13) Inner deck | new design | 2mm stainless steel sus304 |
| (14) Outer deck | new design | 2mm stainless steel sus304 |
| (15) Interior panel | new design | 10mm thickness safety glass / 2mm st. st. sus304 |
| (16) Floor plate | new design | Aluminum profile/stainless steel tread plate |
| (17) Truss | | |
Option features
| Function/feature | Description | Configuration and Specification |
| Brush guard lighting | LED strip/tube | single color/RGB, 24 v |
| Under handrail lighting | LED strip/tube | single color/RGB, 24 v |
| Handrail with disinfection device | UV tube | 24 v |
| Exterior cladding | Customized design | 1.5 mm stainless steel sus304 |
3. Benefits
Fresh aesthetic to improve the escalator appearance after applying the modern design of balustrade, adding lighting or illumination features, etc.
4. Quality and performance
Technical solution by professional technical design team, all retrofit material supply by reputable professional escalator parts manufacturers where managed by mature parts processing technology, strict quality control system.
5. Our service
If you have a need, we happen to be professional and provide quality service. Welcome contact us to discuss any technical issues on escalators.
- Escalator product design service
- Escalator modernization solution
- Escalator customized spare parts
- Escalator technical consultant service
- On site technical support
