Product description

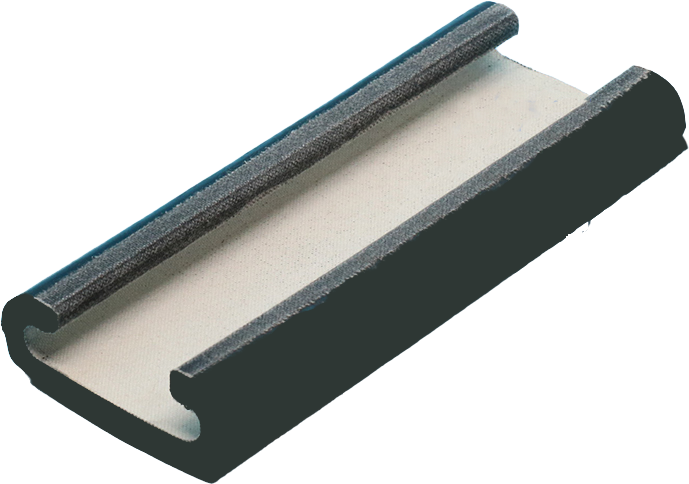

The polyurethane (NT) handrail features: Adaptive handrail friction wheel drive and linear drive mechanism, glossy handrail surface with arbitrary color selection, super wear resistance, extraordinary service life, and considerably reduced sliding phenomena. Cleanness and convenience, bright surfaces as new, incomparable dimensional stability, stronger inner layer wear resistance and overall break strength. It does not "blister" from being squeezed too much.
NT handrail is suitable for escalator/moving walk for commecial and public application. It has black color and various color such as red, blue, gray, yellow suit customer demand.
There are three types of sliding layers inside the handrail of an escalatormoving walk that touches the handrail guide rail: nylon, polyester and cotton. The current use of polyester fabrics is widespread.
The NT handrail provides C type escalator handrail for indoor and outdoor application and the specification below.

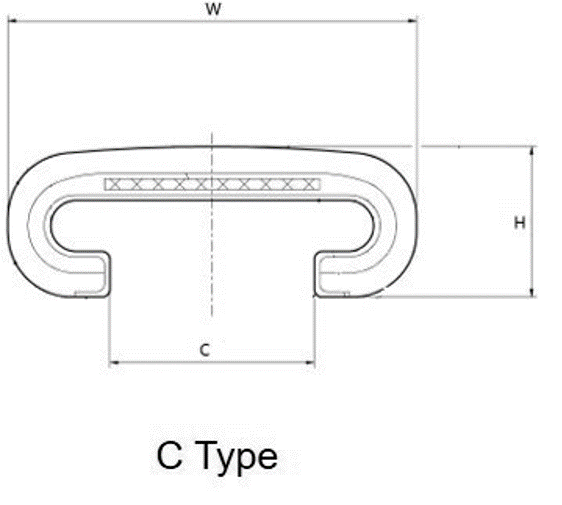

| Handrail Critical Dimensions |
| Product Series | Handrail Type | Surface Material | Outer Width
(W) | Outer Heigh
(H) | Lip Width (C) |
| CN7628 | C | NT | 76 | 28 | 38 |
| CN8028 | C | NT | 80 | 28 | 40 |
| CN8231 | C | NT | 82 | 31 | 41 |
Performance parameter
| Item | Parameter | Remarks |
| design life time | 5-8 yeras | |
| Length tolerance | ≤±20mm | L ≤ 30mm |
| ≤±25mm | 30m < L ≤ 100m |
| ≤±0.03% | L > 100m |
| Minimum positive bending radius | ≤180mm | |
| Minimum back bending radius | ≤275mm | |
| Elongation | ≤0.1% | F=2000N |
| Straightness | ≤4mm | F=1500N, L=2m |
| Breaking force | ≥25KN | |
| Lip strength | ≥70N | 40mm Width, Extend 7mm |
| Hardness | 75±5A | Shore |
| Slip coefficient | ≤0.3 | Between galvanized steel plate |
| ≤0.3 | Between stainless steel plate |
| ≥0.6 | Between traction wheel |
| Operating temperature | -18～43℃ | Nylon slinding layre |
The client will need to choose the corresponding handrail type depending on your escalator or moving walk.
We kindly request our clients to provide us with any documents related to the escalator handrail, e.g. technical service reports, spare parts numbers of the handrail, drawings of the handrail profile, OEM part number, etc. These documents can considerably speed up an inquiry and clarify discrepancies.
|
|

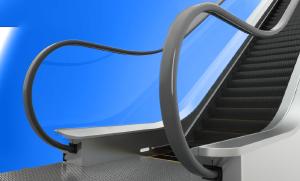

Escalator handrail, C type, polyurethane (NT) handrai, various colors handrail, brack/blue/grey for indoor / outdoor Images
|
